System topology diagram

The primary use case for managing the Next-Generation Firewall (NGFW) capabilities of Catalyst SD-WAN through Security Cloud Control Firewall Management is to streamline and centralize security management across Cisco's security products.

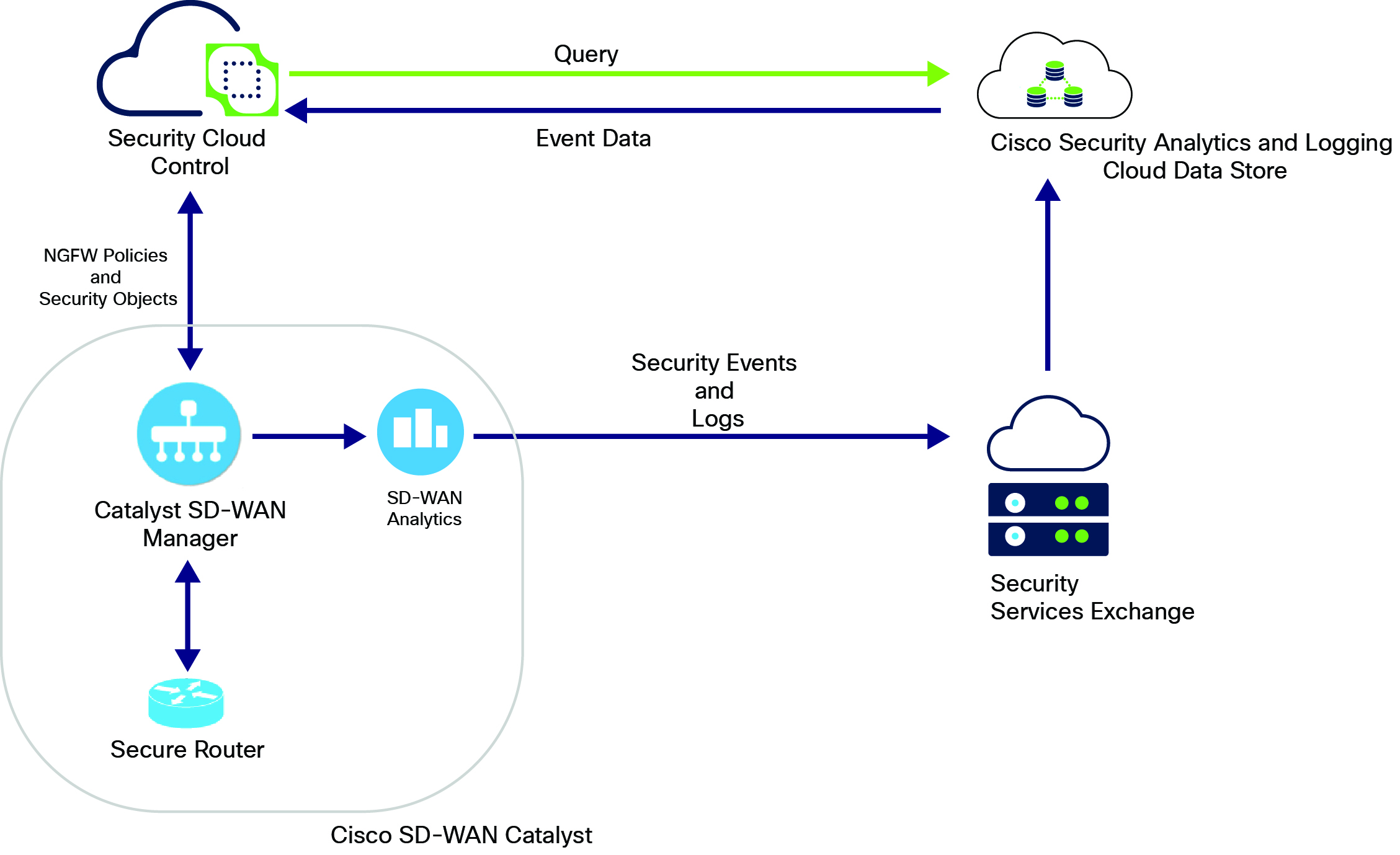

The topology diagram illustrates the integration of Catalyst SD-WAN with Security Cloud Control Firewall Management and other cloud services. The diagram shows the flow of information and interactions between various components.

Note	The Cisco Catalyst 8000 and Secure 8000 devices are collectively referred to as the 'Secure Router' hereafter.

• Security Cloud Control: A central point for security policy enforcement and event correlation. It reads Next-Generation Firewall (NGFW) policies and security objects from the onboarded Catalyst SD-WAN Manager and allows customers to modify these NGFW configurations. It also sends queries to Cisco Security Analytics and Logging cloud data store for events.

• Cisco Catalyst SD-WAN consists of:

  • Catalyst SD-WAN Manager: Manages the SD-WAN fabric and displays NGFW policies and security objects in Security Cloud Control when onboarded to it. Catalyst SD-WAN Manager sends the event data received from Secure Router to SD-WAN Analytics.

  • SD-WAN Analytics: Provides analytics data to the Security Services Exchange.

  • Secure Router: The SD-WAN edge device.

• Cisco Security Analytics and Logging Cloud Data Store: A cloud-based repository for security analytics and logging data. It receives security events and logs from Security Services Exchange, which obtains the analytics data from SD-WAN Analytics engine.

• Security Services Exchange: A cloud-based platform designed to facilitate the integration, communication, and management of various Cisco security services. It sends security events and logs received from the SD-WAN environment and forwards them to the Cisco Security Analytics and Logging Cloud data store.
