Dashboard of a Configured System

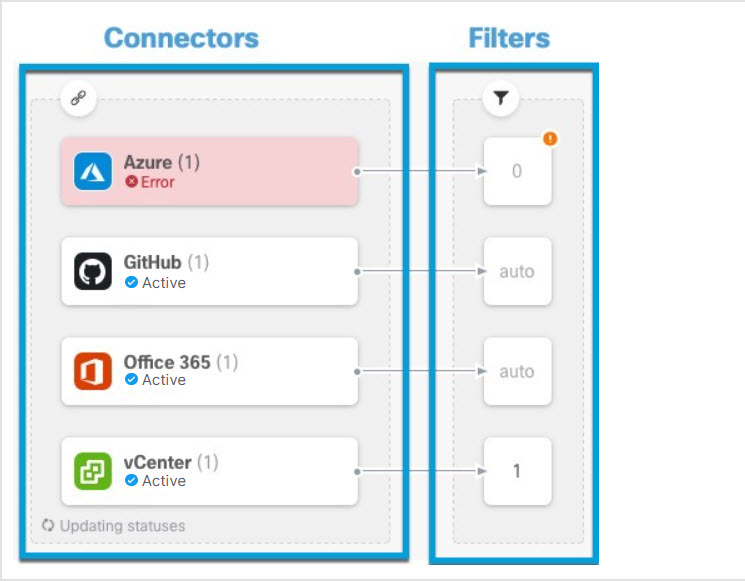

Sample Cisco Secure Dynamic Attributes Connector Dashboard page of a configured system:

Click an area in the figure to learn more about it or click one of the links following the figure.

The Cisco Dynamic Attributes Connector dashboard displays at-a-glance information about configured connectors, filters, and adaptersCreate a ConnectorCreate Dynamic Attributes FiltersCreate an Adapter

The Dashboard shows the following (from left to right):

Connectors column

Filters column

Adapters column

List of connectors with a number indicating how many of each type are configured. Connectors collect dynamic attributes that could be sent to the configured adapter. Dynamic attributes filters specify what data is sent.

Click to view more information about all configured connectors. You can also click the name of a connector to add, edit, or delete connectors; or to view detailed information about them. For more information, see Add, Edit, or Delete Connectors.

List of dynamic attributes filters associated with each connector with a number indicating how many of each filter are associated with a connector.

Click to view more information about all configured filters. You can also click the name of a filter to add, edit, or delete filters; or to view detailed information about them. For more information, see Add, Edit, or Delete Dynamic Attributes Filters.

List of adapters. Adapters receive dynamic objects from configured connectors using configured dynamic attributes filters; these dynamic objects can be used in access control policies without the need to deploy them.

Click to view more information about all configured adapters. You can also click the name of an adapter to add, edit, or delete adapters; or to view detailed information about them. For more information, see Create an Adapter.

Note

Some connectors, such as Outlook 365 and Azure Service tags, automatically pull available dynamic objects without the need for a dynamic attributes filters. Those connectors display Auto in the column.

The Dashboard indicates whether or not an object is available. The Dashboard page is refreshed every 15 seconds but you can click Refresh (refresh icon) at the top of the page at any time to refresh immediately. If issues persist, check your network connection.
