Not Observing Correct Settings for VPN Statistics

This task ensures that managed devices receive the correct health policy settings after modifying VPN statistics configurations.

This task discusses steps you must take after either enabling or disabling the VPN Statistics setting in a health policy. Failure to perform this task means managed devices have a health policy with incorrect settings.

Procedure

Step 1

Log in to the Cloud-Delivered Firewall Management Center if you haven't already done so.

Step 2

Click Troubleshooting > + Show more > Health > Policies.

Step 3

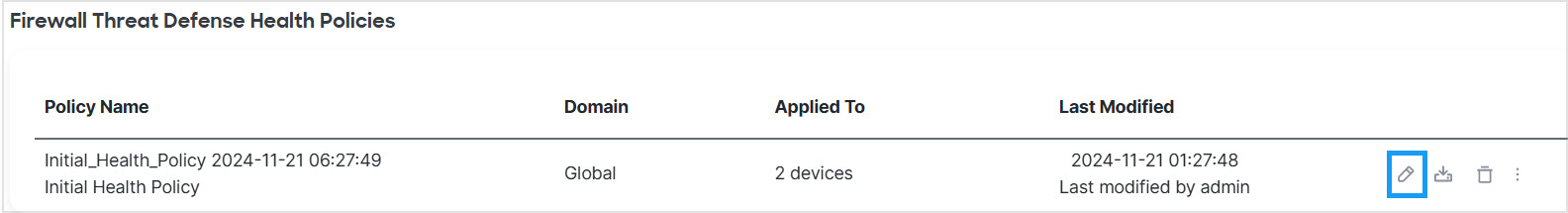

Under Firewall Threat Defense Health Policies, click Edit (edit icon) next to a policy to edit.

The VPN statistics settings in the health policy configuration interface display various metrics and options for monitoring VPN performance and health. The image illustrates the layout and key features of the settings page.

Step 4

On the Health Modules tab page, scroll down to locate VPN Statistics.

Step 5

Verify the VPN statistics setting is correct or change it if necessary.

Step 6

If you changed the setting, click Save, then click Cancel to return to the health policy.

Step 7

Under Firewall Threat Defense Health Policies, click Deploy health policy (deploy icon) to apply the policy.

Step 8

In the Policy Assignments & Deploy dialog box, move the devices to which to deploy the health policy to the Selected Devices field.

Deploy health policies to the Selected Devices list. Use the arrow buttons to move devices between Available and Selected Devices lists.

Step 9

Click Apply.

A message is displayed when the health policy is deployed.

Step 10

After the health policy has finished deploying, click Policies > Security policies > Access Control to edit an access control policy.

Step 11

Click Edit (edit icon) next to a policy to edit.

Step 12

Make a minor change to the policy, such as changing its name.

Step 13

Save the access control policy.

Step 14

Deploy configuration changes..
