How to Control Application Usage

The Web has become the ubiquitous platform for application delivery in the enterprise, whether that is browser based application platforms, or rich media applications that use web protocols as the transport in and out of enterprise networks.

Threat Defense inspects connections to determine the application being used. This makes it possible to write access control rules targeted at applications, rather than just targeting specific TCP/UDP ports. Thus, you can selectively block or allow web-based applications even though they use the same port.

Although you can select specific applications to allow or block, you can also write rules based on type, category, tag, risk, or business relevance. For example, you could create an access control rule that identifies and blocks all high risk, low business relevance applications. If a user attempts to use one of those applications, the session is blocked.

Cisco frequently updates and adds additional application detectors via system and vulnerability database (VDB) updates. Thus, a rule blocking high risk applications can automatically apply to new applications without you having to update the rule manually.

In this use case, we will block any application that belongs to the anonymizer/proxy category.

Procedure

Step 1	Choose Policies > Access Control and edit the access control policy.

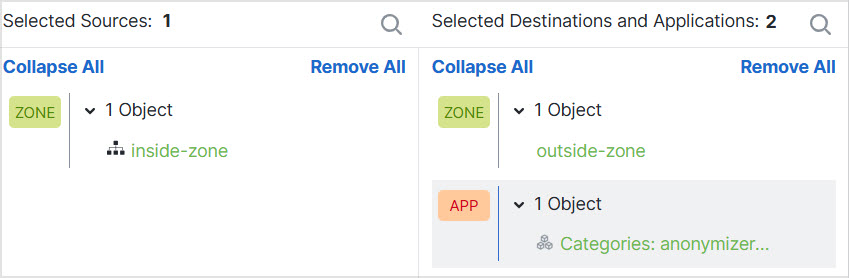

Step 2	Click Add Rule and configure the rule for application control. Give the rule a meaningful name, such as Block_Anonymizers. Select Block for Action. Assuming that you have configured zones, and want this rule to apply to traffic going from the inside to outside, select the Zones tab, and choose your inside zone as the source zone, and the outside zone as the destination zone. Click the Applications tab, select the applications to match, and click Add Application. As you select criteria, such as category and risk level, the list to the right of the criteria updates to show exactly which applications match the criteria. The rule you are writing applies to these applications. Look at this list carefully. For example, you might be tempted to block all very high risk applications. However, as of this writing, TFPT is classified as very high risk. Most organizations would not want to block this application. Take the time to experiment with various filter criteria to see which applications match your selections. Keep in mind that these lists can change with every VDB update. For purposes of this example, select anonymizers/proxies from the Categories list and add it to Destinations and Applications. The match criteria should now look like the following graphic. Click Logging next to the rule action, and enable logging at the start of the connection. You can select a syslog server if you use one. You must enable logging to get information about any connections blocked by this rule.
Step 3	Move the rule so that it comes after any rules that use protocol and port criteria only, but that would not allow traffic that should be blocked by the application rule. Matching applications requires Snort inspection. Because Snort inspection is not needed by rules that use protocol and port only, you can improve system performance by grouping these simple rules at the top of the access control policy as much as possible.
Step 4	Deploy the changes. You can use the application rule hit counts and analysis dashboards to see how this rule is performing and how often users try these applications.
