Management Center: Add a Cluster

Add one of the cluster units as a new device to the Secure Firewall Management Center; the management center auto-detects all other cluster members.

Before you begin

All cluster units must be in a successfully-formed cluster on FXOS prior to adding the cluster to the management center. You should also check which unit is the control unit. Refer to the chassis manager Logical Devices screen or use the threat defense show cluster info command.

Procedure

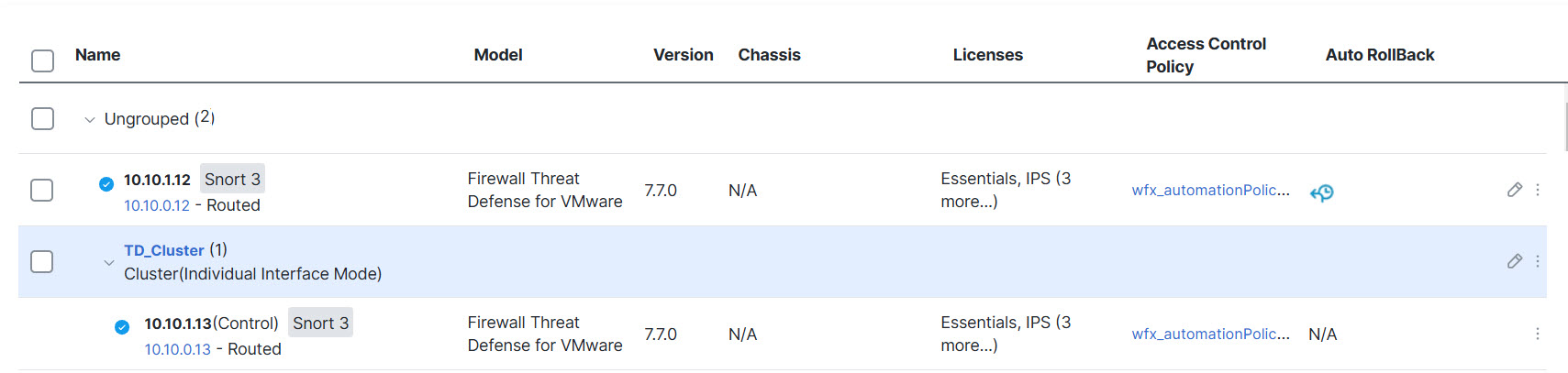

Step 1	In the management center, choose Devices > Device Management, and then choose Add > Add Device to add the control unit using the unit's management IP address you assigned when you deployed the cluster. Add Device In the Host field, enter the IP address or hostname of the control unit. We recommend adding the control unit for the best performance, but you can add any unit of the cluster. If you used a NAT ID during device setup, you may not need to enter this field. In the Display Name field, enter a name for the control unit as you want it to display in the management center. This display name is not for the cluster; it is only for the control unit you are adding. You can later change the name of other cluster members and the cluster display name. In the Registration Key field, enter the same registration key that you used when you deployed the cluster in FXOS. The registration key is a one-time-use shared secret. (Optional) Add the device to a device Group. Choose an initial Access Control Policy to deploy to the device upon registration, or create a new policy. If you create a new policy, you create a basic policy only. You can later customize the policy as needed. Choose licenses to apply to the device. If you used a NAT ID during device setup, expand the Advanced section and enter the same NAT ID in the Unique NAT ID field. Check the Transfer Packets check box to allow the device to transfer packets to the management center. This option is enabled by default. When events like IPS or Snort are triggered with this option enabled, the device sends event metadata information and packet data to the management center for inspection. If you disable it, only event information will be sent to the management center but packet data is not sent. Click Register. The management center identifies and registers the control unit, and then registers all data units. If the control unit does not successfully register, then the cluster is not added. A registration failure can occur if the cluster was not up on the chassis, or because of other connectivity issues. In this case, we recommend that you try re-adding the cluster unit. The cluster name shows on the Devices > Device Management page; expand the cluster to see the cluster units. A unit that is currently registering shows the loading icon. You can monitor cluster unit registration by clicking the Notifications icon and choosing Tasks. The management center updates the Cluster Registration task as each unit registers. If any units fail to register, see Reconcile Cluster Members.

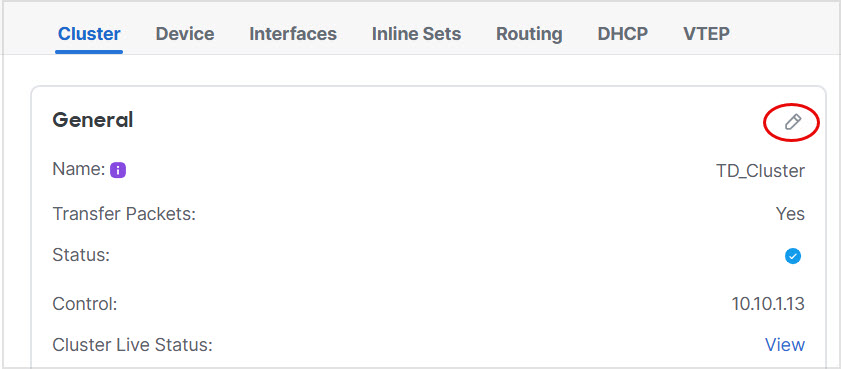

Step 2	Configure device-specific settings by clicking the Edit () for the cluster. Most configuration can be applied to the cluster as a whole, and not member units in the cluster. For example, you can change the display name per unit, but you can only configure interfaces for the whole cluster.

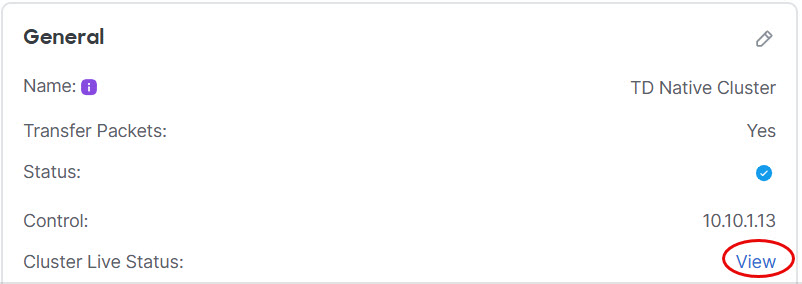

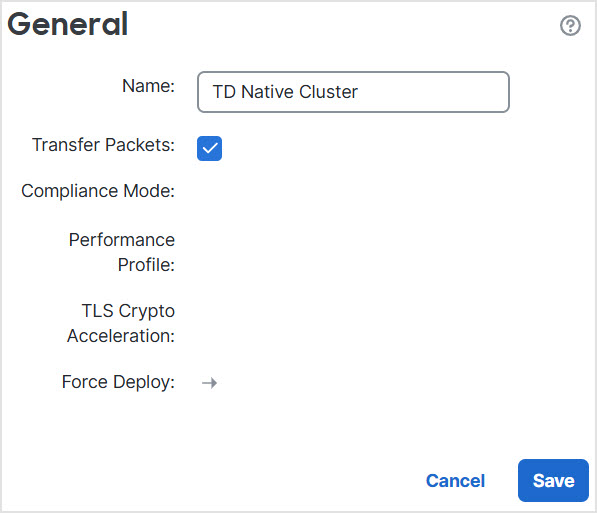

Step 3	On the Devices > Device Management > Cluster screen, you see General, License, System, and Health settings. See the following cluster-specific items: General > Name—Change the cluster display name by clicking the Edit (). Then set the Name field. General > View cluster status—Click the View cluster status link to open the Cluster Status dialog box. The Cluster Status dialog box also lets you retry data unit registration by clicking Reconcile. General > Troubleshoot—You can generate and download troubleshooting logs, and you can view cluster CLIs. See Management Center: Troubleshooting the Cluster. Troubleshoot License—Click Edit () to set license entitlements.

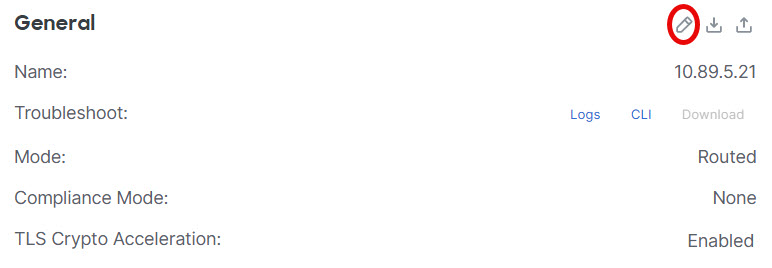

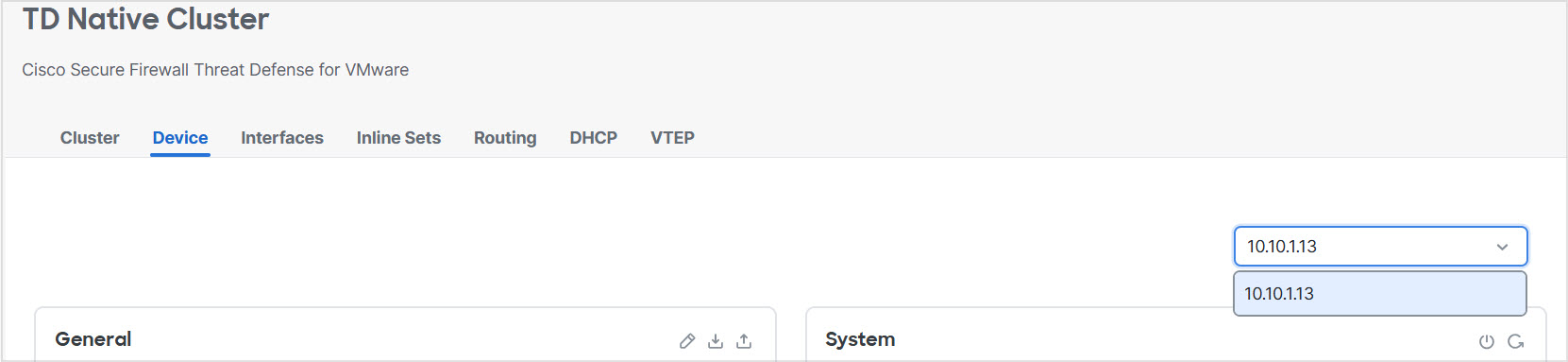

Step 4	On the Devices > Device Management > Devices, you can choose each member in the cluster from the top right drop-down menu and configure the following settings. General > Name—Change the cluster member display name by clicking the Edit (). Then set the Name field. Management > Host—If you change the management IP address in the device configuration, you must match the new address in the management center so that it can reach the device on the network; edit the Host address in the Management area.
