DNS Reply Modification, DNS Server on Outside

The following figure shows a DNS server that is accessible from the outside interface. A server, ftp.cisco.com, is on the inside interface. You configure NAT to statically translate the ftp.cisco.com real address (10.1.3.14) to a mapped address (209.165.201.10) that is visible on the outside network.

In this case, you want to enable DNS reply modification on this static rule so that inside users who have access to ftp.cisco.com using the real address receive the real address from the DNS server, and not the mapped address.

When an inside host sends a DNS request for the address of ftp.cisco.com, the DNS server replies with the mapped address (209.165.201.10). The system refers to the static rule for the inside server and translates the address inside the DNS reply to 10.1.3.14. If you do not enable DNS reply modification, then the inside host attempts to send traffic to 209.165.201.10 instead of accessing ftp.cisco.com directly.

Before you begin

Ensure that you have interface objects (security zones or interface groups) that contain the interfaces for the device. In this example, we will assume the interface objects are security zones named inside and outside. To configure interface objects, select Objects > Object Management, then select Interface.

Procedure

Step 1

Create the network objects for the FTP server.

  1. Choose Objects > Object Management.

  2. Select Network from the table of contents and click Add Network > Add Object.

  3. Define the real FTP server address.

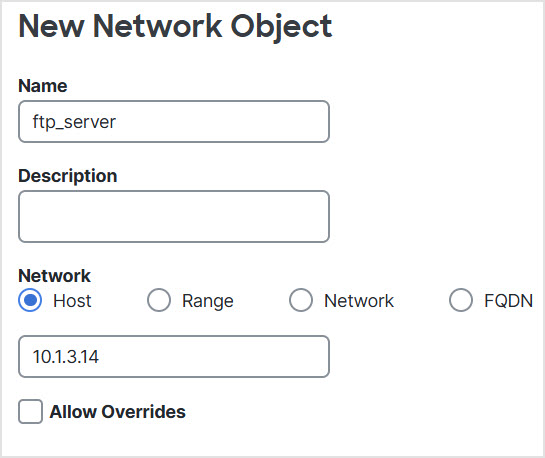

    Name the network object (for example, ftp_server) and enter the host address, 10.1.3.14.

  4. Click Save.

  5. Click Add Network > Add Object and define the FTP server's translated address.

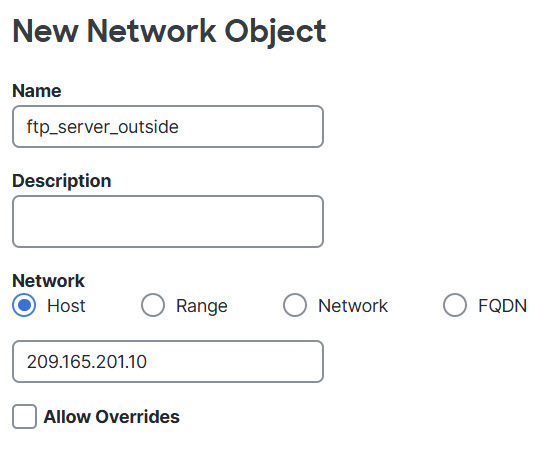

    Name the network object (for example, ftp_server_outside) and enter the host address, 209.165.201.10.

  6. Click Save.

Step 2

Configure the static NAT rule with DNS modification for the FTP server.

  1. Select Devices > NAT and create or edit the threat defense NAT policy.

  2. Click Add Rule.

  3. Configure the following properties:

    • NAT Rule = Auto NAT Rule.

    • Type = Static.

  4. On Interface Objects, configure the following:

    • Source Interface Objects = inside.

    • Destination Interface Objects = outside.

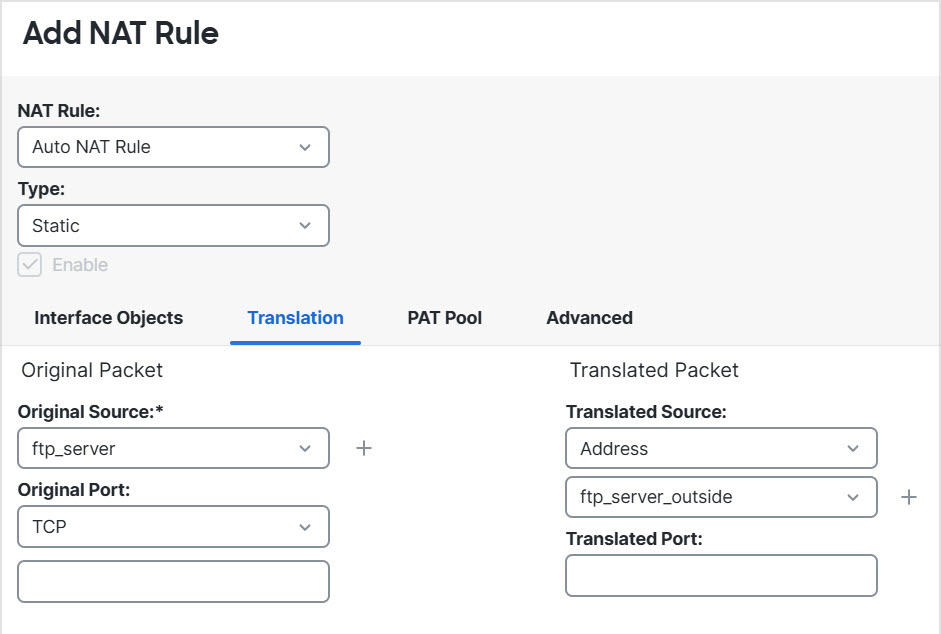

  5. On Translation, configure the following:

    • Original Source = ftp_server network object.

    • Translated Source > Address = ftp_server_outside network object.

  6. On Advanced, select Translate DNS replies that match this rule.

  7. Click OK.
