Reconcile cluster nodes

If a cluster node fails to register, you can reconcile the cluster membership from the device to the Cloud-Delivered Firewall Management Center. For example, a data node might fail to register if the Cloud-Delivered Firewall Management Center is occupied with certain processes, or if there is a network issue.

Procedure

Step 1

If you have enabled the new device management UI, select a cluster to open the side pane, then under Cluster actions, click Cluster live status. See Device management page enhancements. Otherwise, perform the next step.

Step 2

Choose Devices > Device Management More (more icon) for the cluster, and then choose Cluster Live Status to open the Cluster Status dialog box.

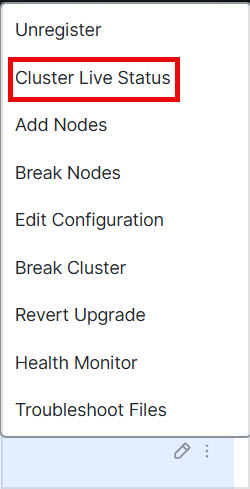

Cluster live status
Cluster Live Status

Step 3

Click Reconcile All.

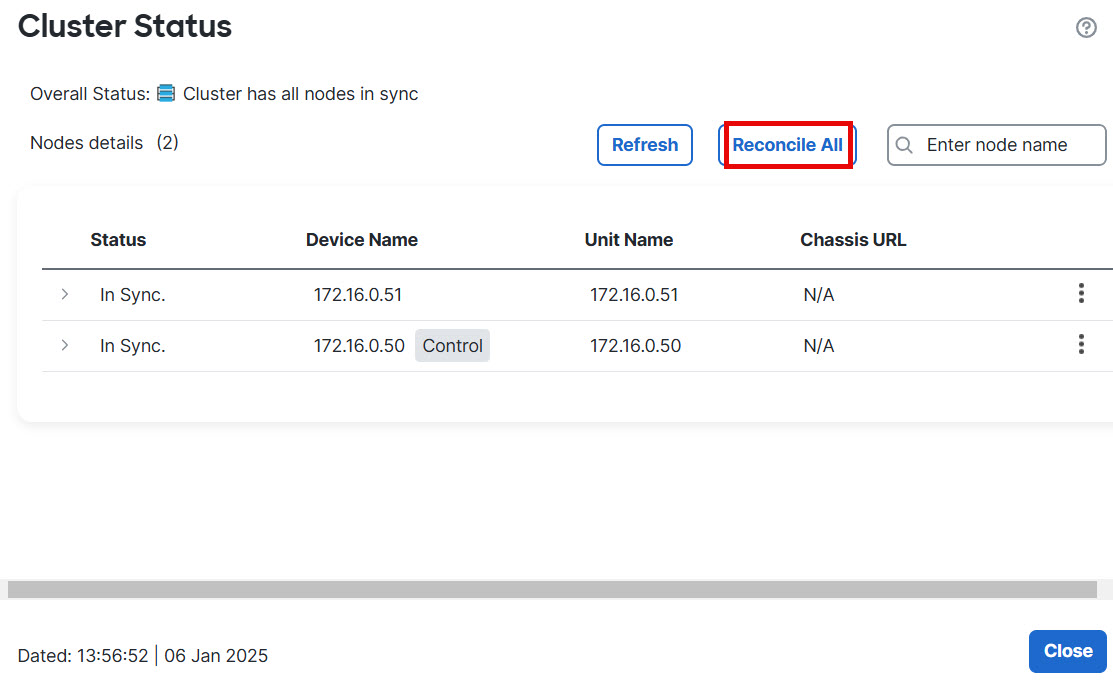

Reconcile all
Reconcile All

For more information about the cluster status, refer to Monitor the cluster.
